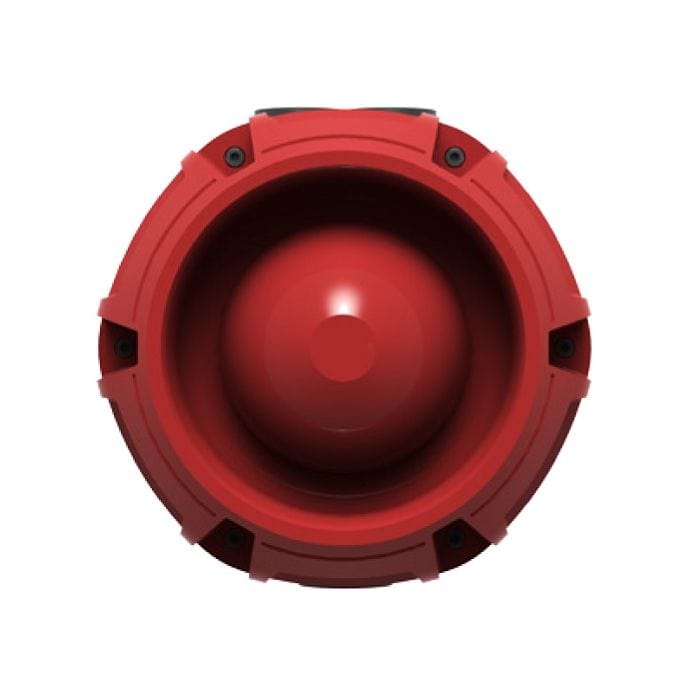

Zeta Raptor Conventional Sounders & Combined Sounder/Flasher

The Raptor conventional sounder with beacon has a coverage pattern of W 2.9 – 8.5 and the sounder part has 22 selective tones. It has been designed to make an “electronics free” first fix and is available in red or white.

• Complies with EN54 Pt 3 Type B & EN54 Pt 23
• 107dB +/- 3dB @ 1m sound output
• 22 Tone patterns (site selectable)
• Suitable for surface mounting only
• Housed in UL V0 flame retardant ABS
• 3 x 20mm cable entries (2 top, 1 bottom)
• First fix, wire to back box technology
• Flashing rate 0.5Hz
• Brand: Zeta
• Product: Sounder Beacon
• Model: ZRPB/R
• Part No.: 42-632
• Flash Colour: White , Body Colour: Red
• Voltage: 17 – 30V DC , Current: @ 30V DC 70mA Max
• IP Rating: IP65 (certified to IP33C) , Sounder Type: B
• Operating Temperature: -25ºC to 70ºC
• Sound Output: @ 1m *107dB +/- 3dB
• Size mm (with back box): 150 x 146 x 107.5 , Weight: 550g
